Ansible File Interaction Guide

This document explains how the key Ansible configuration files work together to provision and configure GigHive VMs.

Overview

GigHive supports multiple VM configurations (e.g., gighive, gighive2):

gighive is the primary group name, gighive2 group can be used for testing a second vm if needed.
The files below are the main config files for Ansible.

ansible.cfg - Global Ansible configuration
inventories/inventory_*.yml - Host and group definitions
inventories/group_vars/all.yml - Global group variables
inventories/group_vars/*.yml - Group-specific variables
playbooks/site.yml - Main playbook with task orchestration

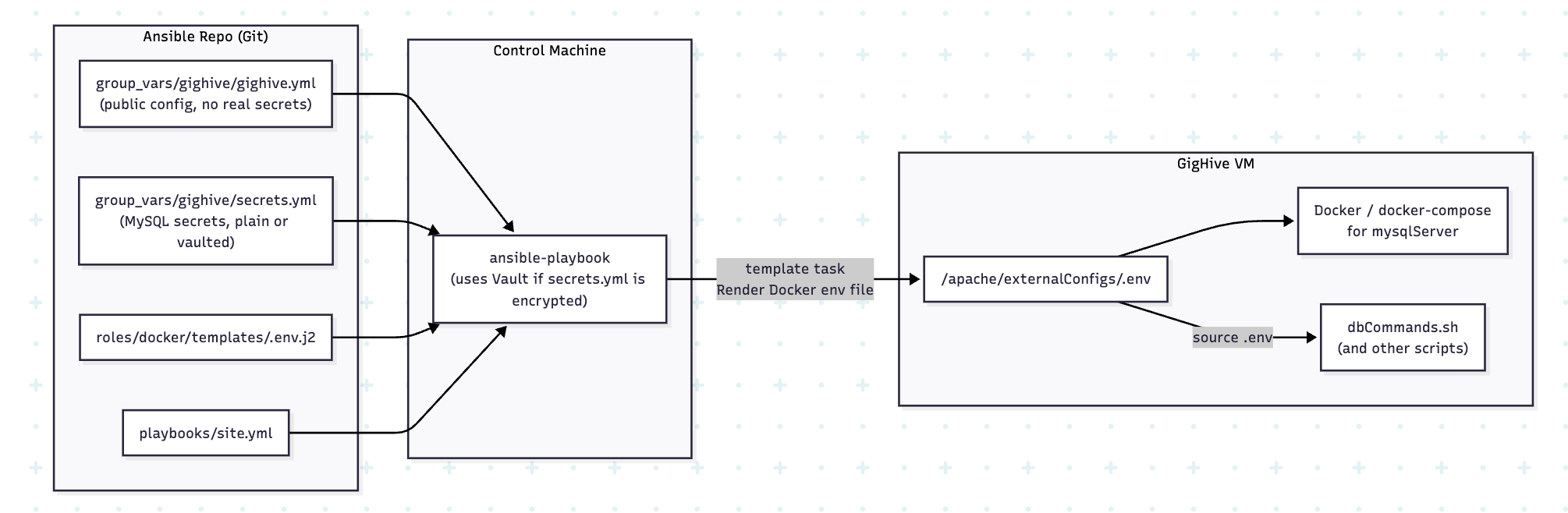

File Interaction Flow

ansible-playbook -i ansible/inventories/inventory_bootstrap.yml ansible/playbooks/site.yml
                    ↓
┌─────────────────────────────────────────────────────────────────────┐
│ 1. ansible.cfg (Global Settings)                                    │
│    - inventory = ansible/inventories (directory to scan)            │
│    - roles_path = ansible/roles                                     │
│    - collections_path = ansible/collections:~/.ansible/collections  │
│    - Various SSH, logging, and performance settings                 │
└─────────────────────────────────────────────────────────────────────┘
                    ↓
┌─────────────────────────────────────────────────────────────────────┐
│ 2. inventory_bootstrap.yml (Host Definitions)                      │
│    - Defines group: gighive                                         │
│    - Defines host: gighive_vm (192.168.1.248)                       │
│    - Makes gighive a child of target_vms                            │
│    - Sets ansible_user, ansible_host, SSH options                   │
└─────────────────────────────────────────────────────────────────────┘
                    ↓
┌─────────────────────────────────────────────────────────────────────┐
│ 3. group_vars/all.yml (Global Group Variables)                      │
│    - repo_root: base path of the repo                               │
│    - roles_dir: "/ansible/roles"                     │
│    - cloud_init_files_dir: "/cloud_init/files"       │
│    - Other shared convenience paths                                 │
└─────────────────────────────────────────────────────────────────────┘
                    ↓
┌─────────────────────────────────────────────────────────────────────┐
│ 4. group_vars/gighive.yml (Auto-loaded Variables)                   │
│    - vm_name: "gighive"                                             │
│    - hostname: "gighive"                                            │
│    - static_ip: ""                                │
│    - app_flavor: gighive                                            │
│    - database_full: false                                           │
│    - All passwords, paths, and configuration variables              │
└─────────────────────────────────────────────────────────────────────┘
                    ↓
┌─────────────────────────────────────────────────────────────────────┐
│ 5. playbooks/site.yml (Task Execution)                              │
│    Play 1: hosts: gighive(:gighive2) → VM Provisioning (VirtualBox) │
│    Play 2: hosts: gighive(:gighive2) → Cloud-init Disable           │
│    Play 3: hosts: target_vms → Main Configuration (Docker, etc.)    │
└─────────────────────────────────────────────────────────────────────┘

Detailed File Descriptions

1. ansible.cfg

Location: /home/sodo/scripts/gighive/ansible.cfg

Purpose: Global Ansible configuration that applies to all playbook runs.

Key Settings:

[defaults]
inventory = ansible/inventories          # Where to find inventory files
roles_path = ansible/roles               # Where to find roles
collections_path = ansible/collections:~/.ansible/collections:/usr/share/ansible/collections
log_path = ~/.ansible/ansible.log        # Logging location
host_key_checking = False                # Disable SSH host key checking
stdout_callback = yaml                   # Output format
callbacks_enabled = timer, profile_tasks, vars_trace

[ssh_connection]
pipelining = True                        # Faster SSH execution
ssh_args = -o ControlMaster=auto -o ControlPersist=60s

Important Notes:

All paths are relative to the repository root ($GIGHIVE_HOME)
Run ansible-playbook commands from $GIGHIVE_HOME
No group-specific logic here - this is global configuration

2. playbooks/site.yml

Location: /home/sodo/scripts/gighive/ansible/playbooks/site.yml

Purpose: Main orchestration playbook that defines what tasks run on which hosts.

Key Plays:

# Play 1: VM Provisioning (runs on Ansible controller)
- name: Provision VM in VirtualBox
  hosts: gighive(:gighive2)              # Matches either group
  connection: local                     # Runs on controller, not VM
  tags: [ vbox_provision,cloud_init ]
  roles:
    - cloud_init

# Play 2: Cloud-init Disable (runs inside VM after creation)
- name: Disable Cloud-Init inside VM
  hosts: gighive(:gighive2)              # Matches either group
  become: yes
  tags: [ vbox_provision,cloud_init_disable ]
  roles:
    - cloud_init_disable

# Play 3: Main Configuration (runs on all target VMs)
- name: Configure target VM
  hosts: target_vms                     # Parent group containing gighive/gighive2
  become: true
  roles:
    - base
    - docker
    - security_basic_auth
    - post_build_checks
    - validate_app
    - mysql_backup

Host Pattern Syntax:

gighive:gighive2 - Matches hosts in EITHER group (colon = OR)
target_vms - Matches all hosts in the target_vms group (includes both gighive and gighive2)

3. inventories/inventory_*.yml

Location: /home/sodo/scripts/gighive/ansible/inventories/

Purpose: Define hosts, groups, and their relationships.

Example: inventory_bootstrap.yml

all:
  children:
    target_vms:                        # Parent group
      children:
        gighive: {}                   # Child group

    gighive:                          # Group definition
      hosts:
        gighive_vm:                    # Host label (arbitrary)
          ansible_host: 192.168.1.248  # Actual IP address
          ansible_user: ubuntu         # SSH user
          ansible_python_interpreter: /usr/bin/python3
          ansible_ssh_common_args: '-o StrictHostKeyChecking=no'

Key Concepts:

Host label (gighive_vm): Arbitrary name Ansible uses internally
Group name (gighive): Must match playbook hosts: patterns
ansible_host: The actual IP address to connect to
Hierarchy: gighive is a child of target_vms

Available Inventories:

inventory_bootstrap.yml - Primary gighive VM (e.g. 192.168.1.248)
inventory_gighive2.yml - Optional secondary/test VM (gighive2)
inventory_baremetal.yml - For bare metal Ubuntu hosts
inventory_azure.yml - For Azure cloud deployments

4. inventories/group_vars/*.yml

Location: /home/sodo/scripts/gighive/ansible/inventories/group_vars/

Purpose: Define variables that automatically apply to specific groups.

Auto-loading Rules:

group_vars/all.yml is loaded for all hosts in all inventories
When targeting group gighive, Ansible automatically loads group_vars/gighive.yml
When targeting group gighive2, Ansible automatically loads group_vars/gighive2.yml

4.1 group_vars/all.yml

Location: /home/sodo/scripts/gighive/ansible/inventories/group_vars/all.yml

Purpose: Provide global convenience variables and path roots shared by all environments.

Key Settings:

# One true repo root
repo_root: ""

# Convenience paths
roles_dir: "/ansible/roles"
cloud_init_files_dir: "/cloud_init/files"

These values are referenced by other group vars (for example, cloud_image_dir, cloud_image_vmdk, and nocloud_iso in group_vars/gighive.yml) and by roles such as cloud_init.

Example usage in group_vars/gighive.yml:

# vmdk/vdi specs for local vm
cloud_image_dir: ""
cloud_image_vmdk: "/-server-cloudimg-amd64-.vmdk"
cloud_image_vdi: "/-server-cloudimg-amd64-.vdi"
nocloud_iso: "/seed-.iso"

4.2 group_vars/gighive.yml

Example: group_vars/gighive.yml

# VM Identity
hostname: "gighive"
vm_name: "gighive"
static_ip: ""        # References inventory value

# VirtualBox Configuration
disk_size_mb: 64000
bridge_iface: "enp8s0"
gateway: "192.168.1.1"

# Application Configuration
app_flavor: gighive                    # Determines which overlay files to use
database_full: false                   # Use sample database (not full dataset)

# Media Sync Configuration
sync_video: true
reduced_video: true                    # Use reduced video set from assets/
sync_audio: true
reduced_audio: true                    # Use reduced audio set from assets/

# Docker Rebuild Control
rebuild_mysql: false                   # Preserve MySQL data
rebuild_mysql_data: false              # Don't wipe database

# Authentication
admin_user: admin
viewer_user: viewer
uploader_user: uploader
gighive_admin_password:
gighive_viewer_password
gighive_uploader_password:

# Paths (derived from site.yml pre_tasks)
gighive_htpasswd_host_path: "/apache/externalConfigs/gighive.htpasswd"
mysql_backup_script_dir: ""
mysql_backups_dir: "/backups"

# Upload Limits
upload_max_bytes: 6442450944           # 6GB
upload_max_mb: 6144

Complete Execution Flow

Command

ansible-playbook -i ansible/inventories/inventory_bootstrap.yml \
                 ansible/playbooks/site.yml \
                 --ask-become-pass \
                 --skip-tags blobfuse2

Step-by-Step Execution

Ansible reads ansible.cfg
- Sets global defaults (SSH options, logging, callbacks)
- Knows to look in ansible/roles for roles
- Knows to look in ansible/inventories for inventory files
Ansible loads inventory_bootstrap.yml
- Discovers group: gighive
- Discovers host: gighive_vm at 192.168.1.248
- Notes that gighive2 is a child of target_vms
Ansible auto-loads group_vars/all.yml
- Global variables like repo_root, roles_dir, and cloud_init_files_dir are set
Ansible auto-loads group_vars/gighive.yml
- All variables become available to plays targeting gighive
- Variables like vm_name, hostname, app_flavor are now set
Ansible executes site.yml plays in order:

Play 1: Provision VM in VirtualBox
- hosts: gighive(:gighive2) matches both the gighive and gighive2 groups
- connection: local means run on controller (not VM)
- Executes cloud_init role to create VM in VirtualBox
- Uses variables from group_vars/gighive.yml
Play 2: Disable Cloud-Init inside VM
- hosts: gighive(:gighive2) matches both the gighive and gighive2 groups
- Connects to newly created VM at 192.168.1.248
- Executes cloud_init_disable role
Play 3: Configure target VM
- hosts: target_vms matches because gighive is a child
- Runs all configuration roles: base, docker, security, etc.
- Uses variables from group_vars/gighive.yml

Supporting Multiple Configurations

The playbook primarily targets the gighive VM, but can optionally support a second gighive2 VM:

Typical run: gighive VM

ansible-playbook -i ansible/inventories/inventory_bootstrap.yml \
                 ansible/playbooks/site.yml \
                 --ask-become-pass

Loads group_vars/gighive.yml
Creates VM named “gighive” at 192.168.1.248

Optional: gighive2 VM (secondary/test)

ansible-playbook -i ansible/inventories/inventory_gighive2.yml \
                 ansible/playbooks/site.yml \
                 --ask-become-pass

Loads group_vars/gighive2.yml
Creates VM named “gighive2” at 192.168.1.254

Common Patterns

Host Pattern Matching in Playbooks

# Match single group
hosts: gighive

# Match multiple groups (OR logic)
hosts: gighive:gighive2

# Match parent group (includes all children)
hosts: target_vms

# Match all hosts
hosts: all

# Match with wildcards
hosts: gighive*

Variable Precedence (highest to lowest)

Extra vars (-e on command line)
Task vars
Block vars
Role vars
Play vars
Host vars (host_vars/)
Group vars (group_vars/) ← Most common for GigHive
Inventory vars
Role defaults

Troubleshooting

Problem: “Could not match supplied host pattern”

Symptom:

[WARNING]: Could not match supplied host pattern, ignoring: gighive

Cause: Playbook references a group name that doesn’t exist in the inventory.

Solution:

Check playbooks/site.yml hosts: lines match group names in inventory
Use hosts: gighive:gighive2 to support both configurations

Problem: Variables not loading

Symptom: Playbook fails with undefined variable errors.

Cause: Group vars file doesn’t match the group name in inventory.

Solution:

Inventory group: gighive → Must have group_vars/gighive.yml
Inventory group: gighive2 → Must have group_vars/gighive2.yml

Problem: Wrong IP address

Symptom: Ansible connects to wrong host or can’t connect.

Cause: ansible_host in inventory doesn’t match actual VM IP.

Solution:

Check VM’s actual IP: VBoxManage guestproperty enumerate <vm-name> | grep IP
Update ansible_host in inventory file to match

Best Practices

Always run from repo root ($GIGHIVE_HOME)
- All paths in ansible.cfg are relative to repo root
Use descriptive group names
- Group name should match the VM purpose: gighive, gighive2, prod, etc.
Keep group_vars files in sync
- When creating new inventory, create matching group_vars/*.yml
Use parent groups for shared configuration
- target_vms contains common configuration for all VMs
- Individual groups (gighive, gighive2) contain specific overrides
Document IP addresses
- Keep a reference of which IP belongs to which VM configuration

Reference: File Locations

$GIGHIVE_HOME/
├── ansible.cfg                                    # Global Ansible config
├── ansible/
│   ├── inventories/
│   │   ├── inventory_bootstrap.yml              # gighive group (192.168.1.248)
│   │   ├── inventory_gighive2.yml                # gighive2 group (192.168.1.254)
│   │   ├── inventory_baremetal.yml               # Bare metal hosts
│   │   ├── inventory_azure.yml                   # Azure cloud hosts
│   │   └── group_vars/
│   │       ├── all.yml                           # Variables for all hosts
│   │       ├── gighive.yml                       # Variables for gighive group
│   │       ├── gighive2.yml                      # Variables for gighive2 group
│   │       ├── prod.yml                          # Variables for prod group
│   │       └── ubuntu.yml                        # Variables for ubuntu group
│   ├── playbooks/
│   │   └── site.yml                              # Main orchestration playbook
│   └── roles/
│       ├── cloud_init/                           # VM provisioning role
│       ├── cloud_init_disable/                   # Cloud-init cleanup role
│       ├── base/                                 # Base system configuration
│       ├── docker/                               # Docker and containers
│       └── ...                                   # Other roles
└── docs/
    └── ANSIBLE_FILE_INTERACTION.md               # This document

gighive

Ansible File Interaction Guide

Overview

File Interaction Flow

Detailed File Descriptions

1. ansible.cfg

2. playbooks/site.yml

3. inventories/inventory_*.yml

4. inventories/group_vars/*.yml

4.1 group_vars/all.yml

4.2 group_vars/gighive.yml

Complete Execution Flow

Command

Step-by-Step Execution

Supporting Multiple Configurations

Typical run: gighive VM

Optional: gighive2 VM (secondary/test)

Common Patterns

Host Pattern Matching in Playbooks

Variable Precedence (highest to lowest)

Troubleshooting

Problem: “Could not match supplied host pattern”

Problem: Variables not loading

Problem: Wrong IP address

Best Practices

Reference: File Locations

See Also
